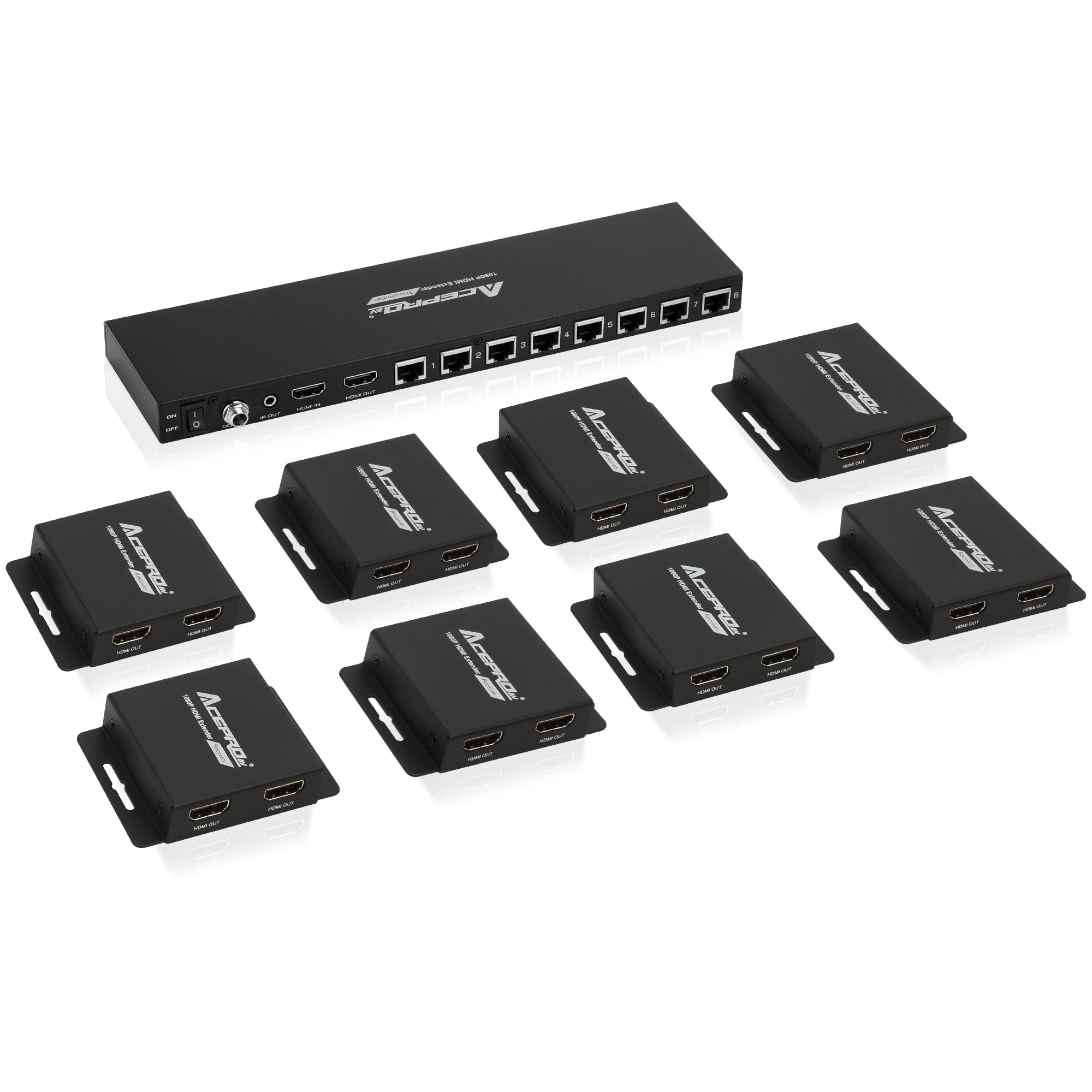

AceProAV 1080P 1x8 HDMI Splitter Over Cat6 Extender - Black
AceProAV 1080P 1x8 HDMI Splitter Over Cat6 Extender - Black

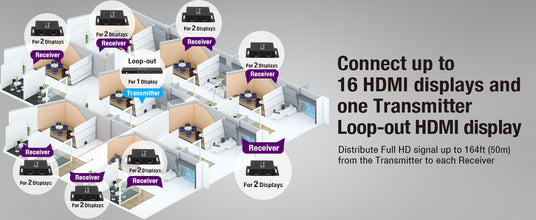

Send Video to Multiple Screens

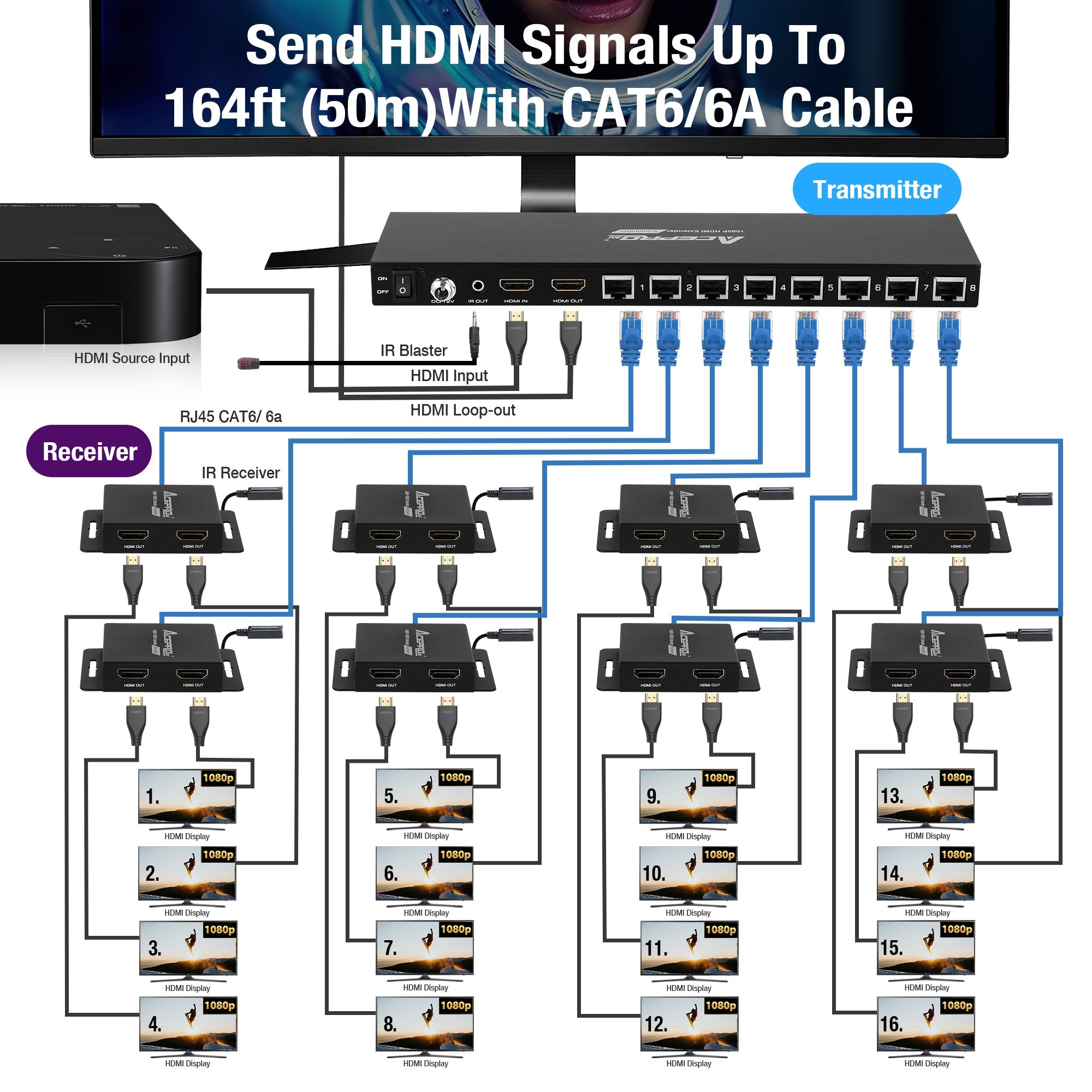

Extend Full HD Up to 164 ft
Stable Signal Over Long Distance
Regular price
$274.99
Sale price
$274.99
Regular price
Shipping calculated at checkout.
Available in stock (40)
Estimated delivery in 3-7 business days
Product Features

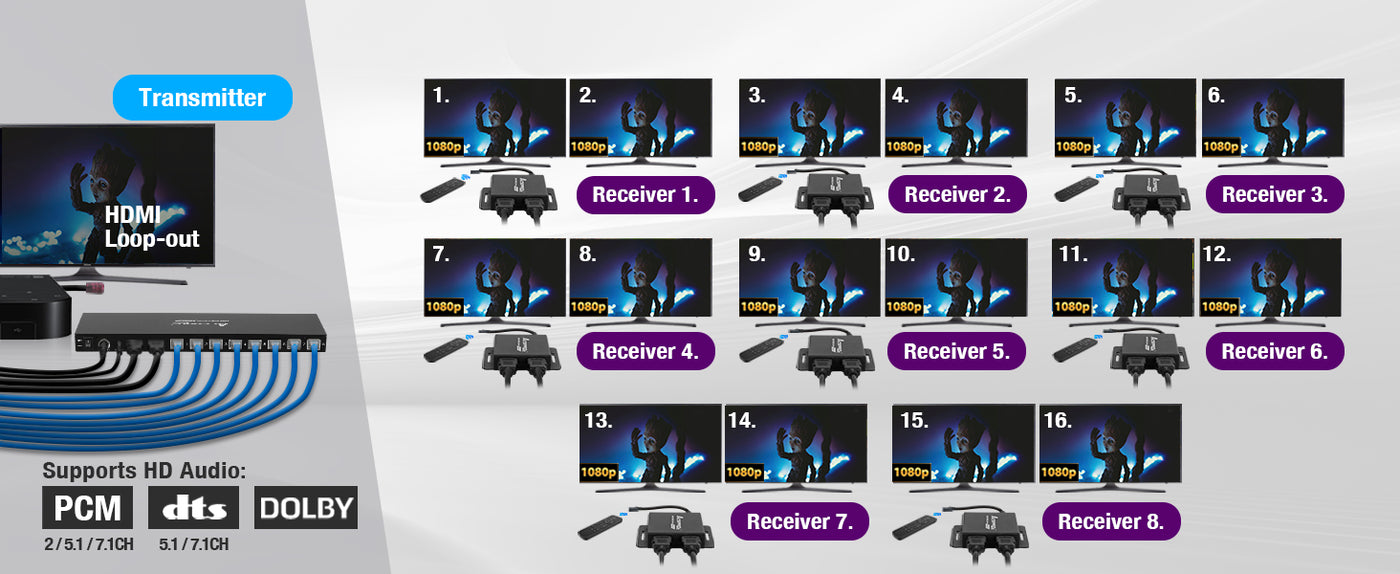

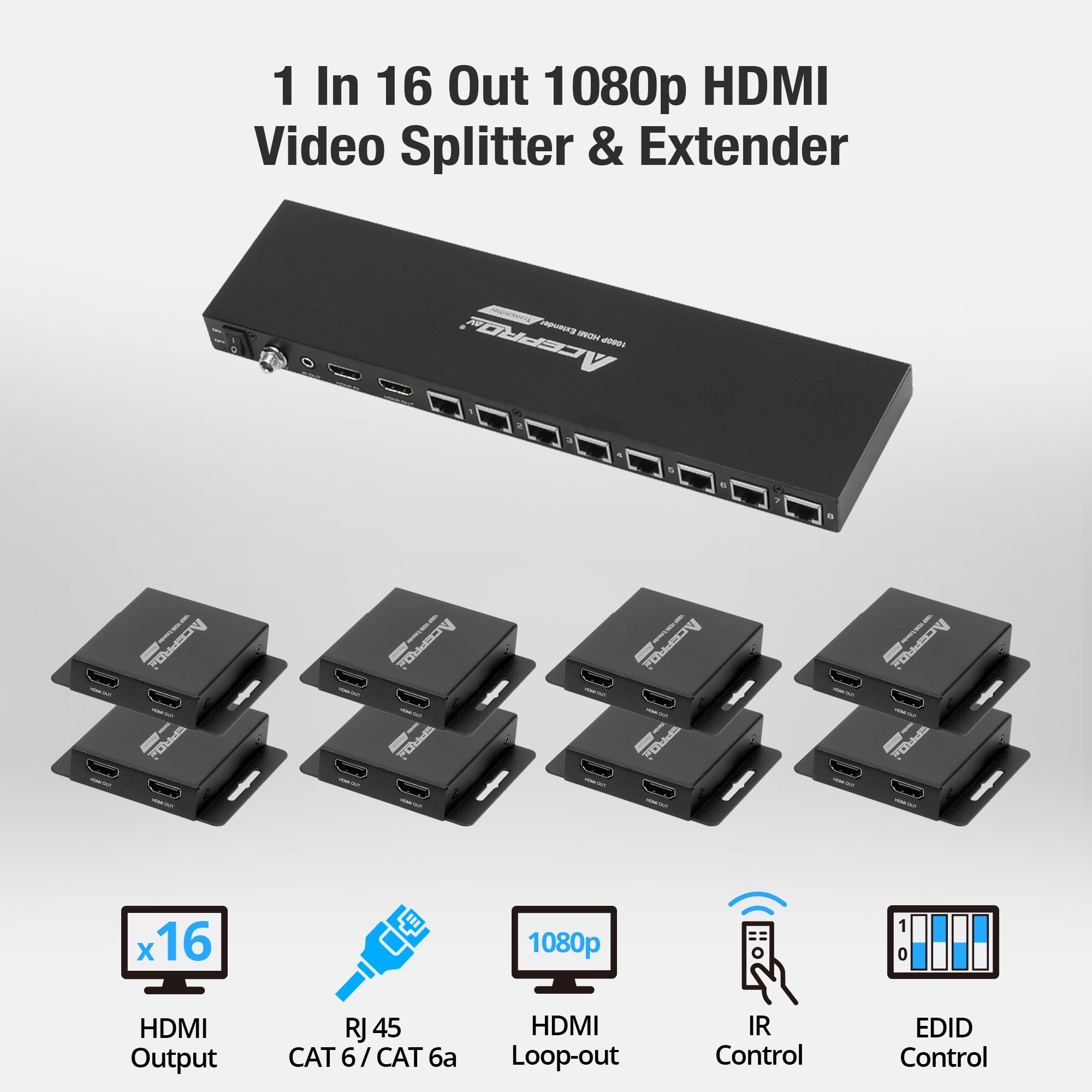

1 In 16 Out Full HD HDMI Extender
1 In 16 Out Full HD HDMI Extender
Long-Distance Signal Transmission
Long-Distance Signal Transmission
Crystal Clear Full HD Output
Crystal Clear Full HD Output
Local HDMI Loop-Out Port
Local HDMI Loop-Out Port
30 Days Return
1 Year Warranty
Free Shipping in USA
Couldn't load pickup availability
Duplicated Screens To Passively Attract Customers

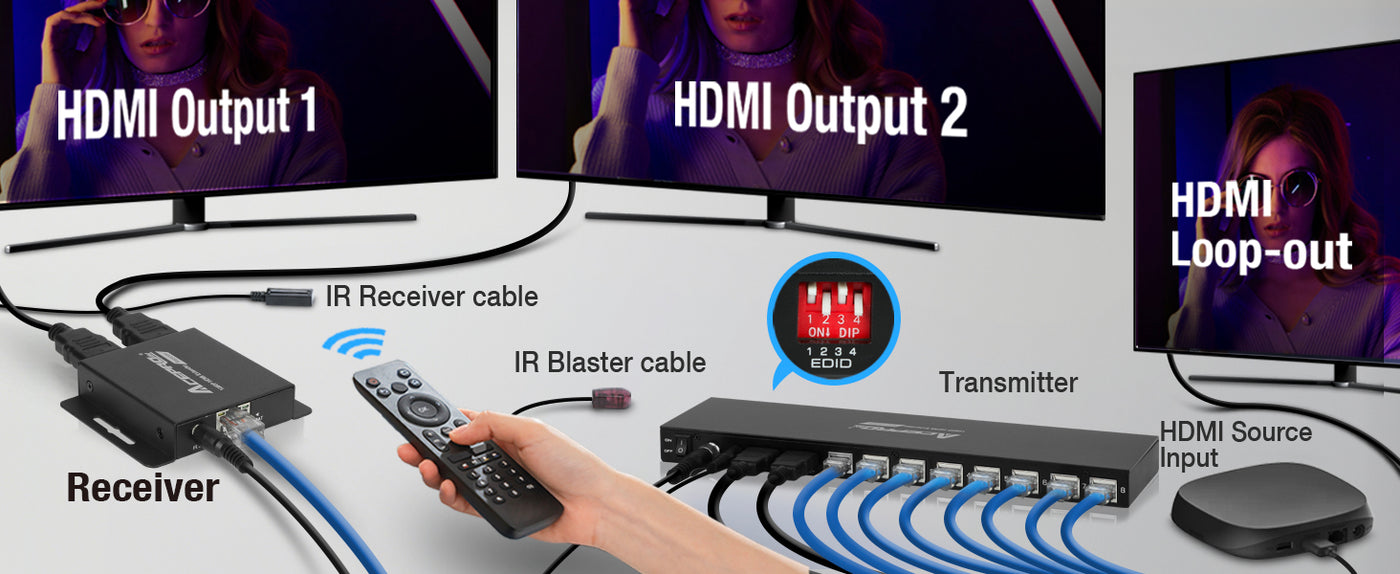

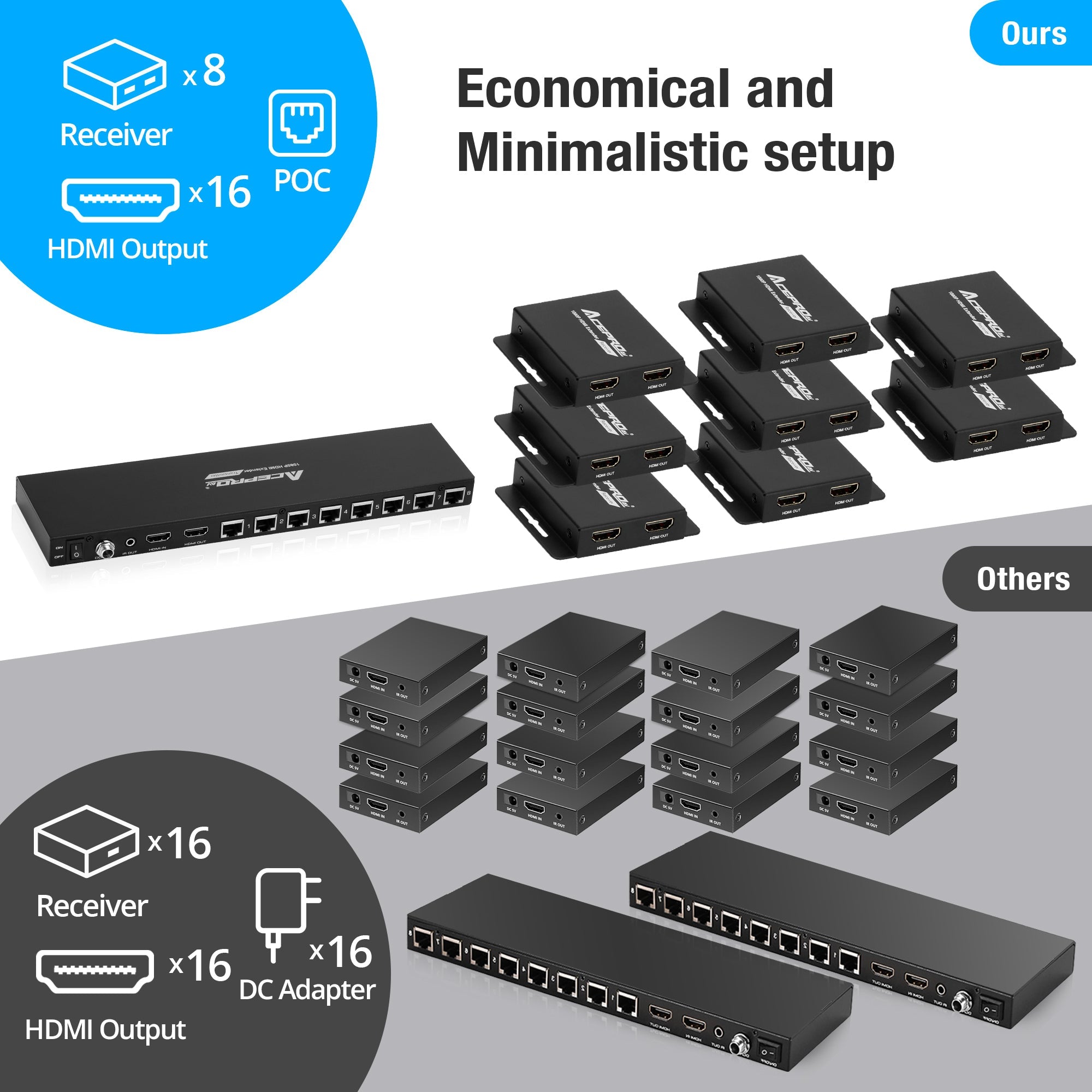

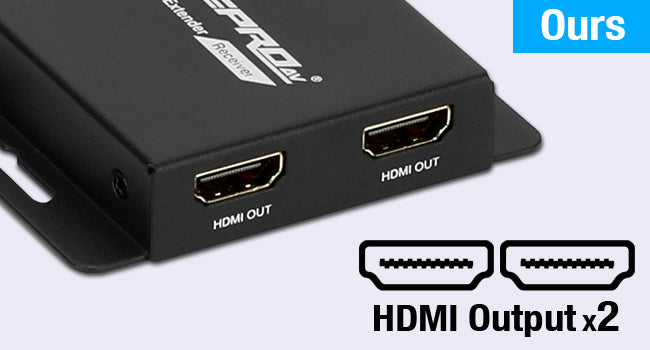

Ours: Receiver With Dual HDMI Output
1.Cost effective 1 in 16 out solution for Full HD 1920x1080 Display
2.Shares one Receiver for two displays
3.Compact size and space saving
4.No power adapter required for each Receiver to function
5.Incorporated wall mount design for easier project integration
2.Shares one Receiver for two displays
3.Compact size and space saving
4.No power adapter required for each Receiver to function
5.Incorporated wall mount design for easier project integration

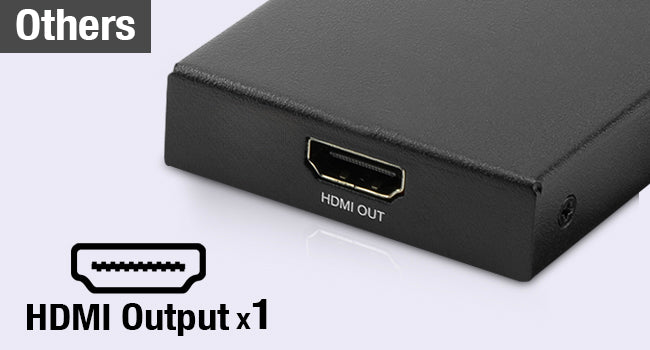

Others: Receiver With Single HDMI Output
1.Relatively expensive 1 in 16 out solution for Full HD 1920x1080 Display
2.Requires one Receiver for each display
3.Bulky size and takes up lots of space
4.Requires power adapter for each Receiver to function
5.Lacking wall mount design cumbersome for project integration
2.Requires one Receiver for each display
3.Bulky size and takes up lots of space
4.Requires power adapter for each Receiver to function
5.Lacking wall mount design cumbersome for project integration

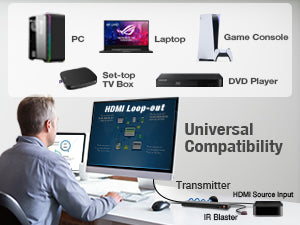

Quick Setup & Operation
Preview content with local loop-out display on Transmitter before transmitting it to each Receiver. Compatible with most HDMI enabled media devices.
Better Image Clarity
Higher visual fidelity with Full HD image quality for a pleasant viewing experience. A perfect sweet spot in terms of setup cost for most businesses.

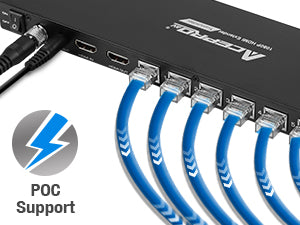

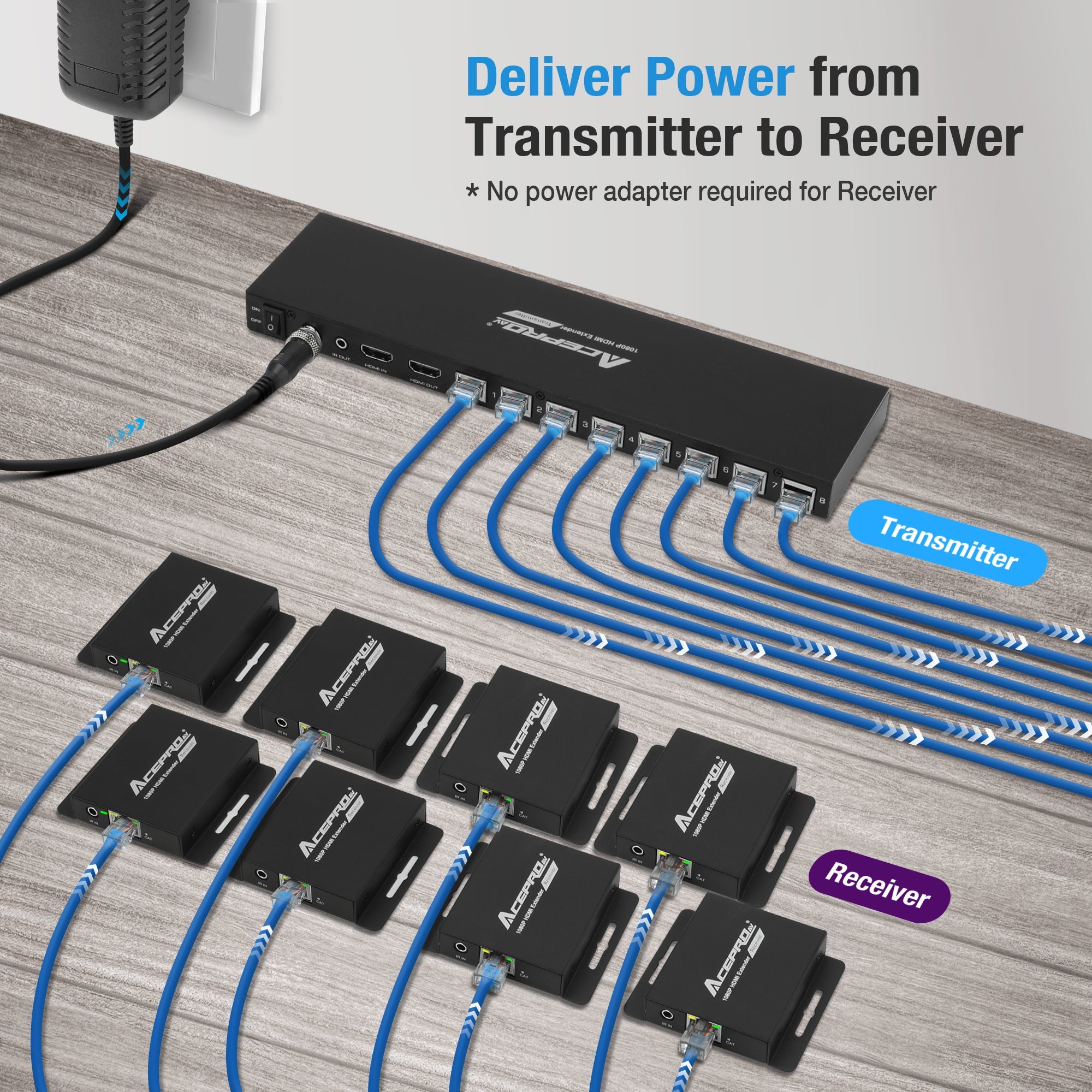

Direct Power To Receiver
No power adapter required to operate Receiver meaning one less power outlet needed. Power is supplied from Transmitter to Receiver via the RJ45 cable.

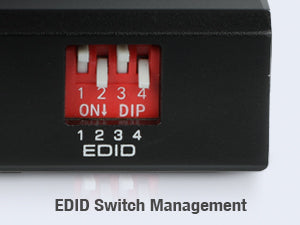

Full HD Compatibility
Includes User Manual which illustrates how to configure EDID Switch settings. Configure up to 7 different EDID settings for 1080p, 1080i and 3D 1080p.
Enhanced Professionalism For Your Commercial Functions With Multi-Screen Setup
| HDCP Compliant | HDCP 1.2 and DVI 1.0 |
| Supported Audio | PCM 2 / 5.1 / 7.1CH, Dolby and DTS 5.1 / 7.1CH |

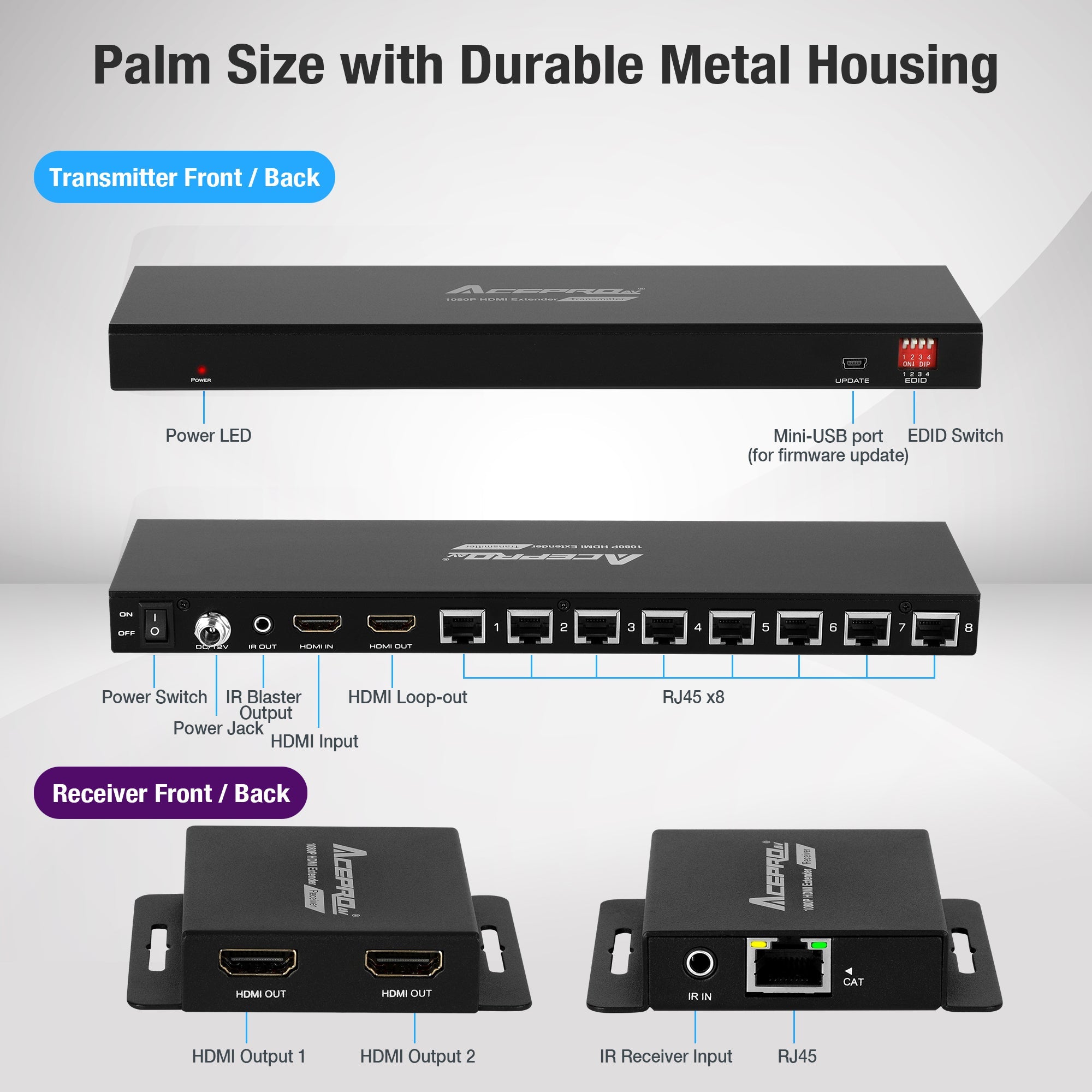

| Transmitter Port Interface | Power Switch, Power Jack, IR Blaster Output, HDMI Input, HDMI Loop-out, RJ45 Output (x8), Power LED, Mini-USB port (for firmware update), EDID Switch |
| Receiver Port Interface | HDMI Output (x2), IR Receiver Input, RJ45 Input |
| [[Supported CAT Cable | Length]] |
| Supported HDMI Cable Length | 33ft (10m) (max.) |
| IR Signal | One-way Signal Pass-through (Receiver to Transmitter) |
| IR Cable Length | IR Blaster Cable: 46.0" (1170mm) |
| DC Adapter | Input: 100-240V / 50-60Hz / 0.8A |

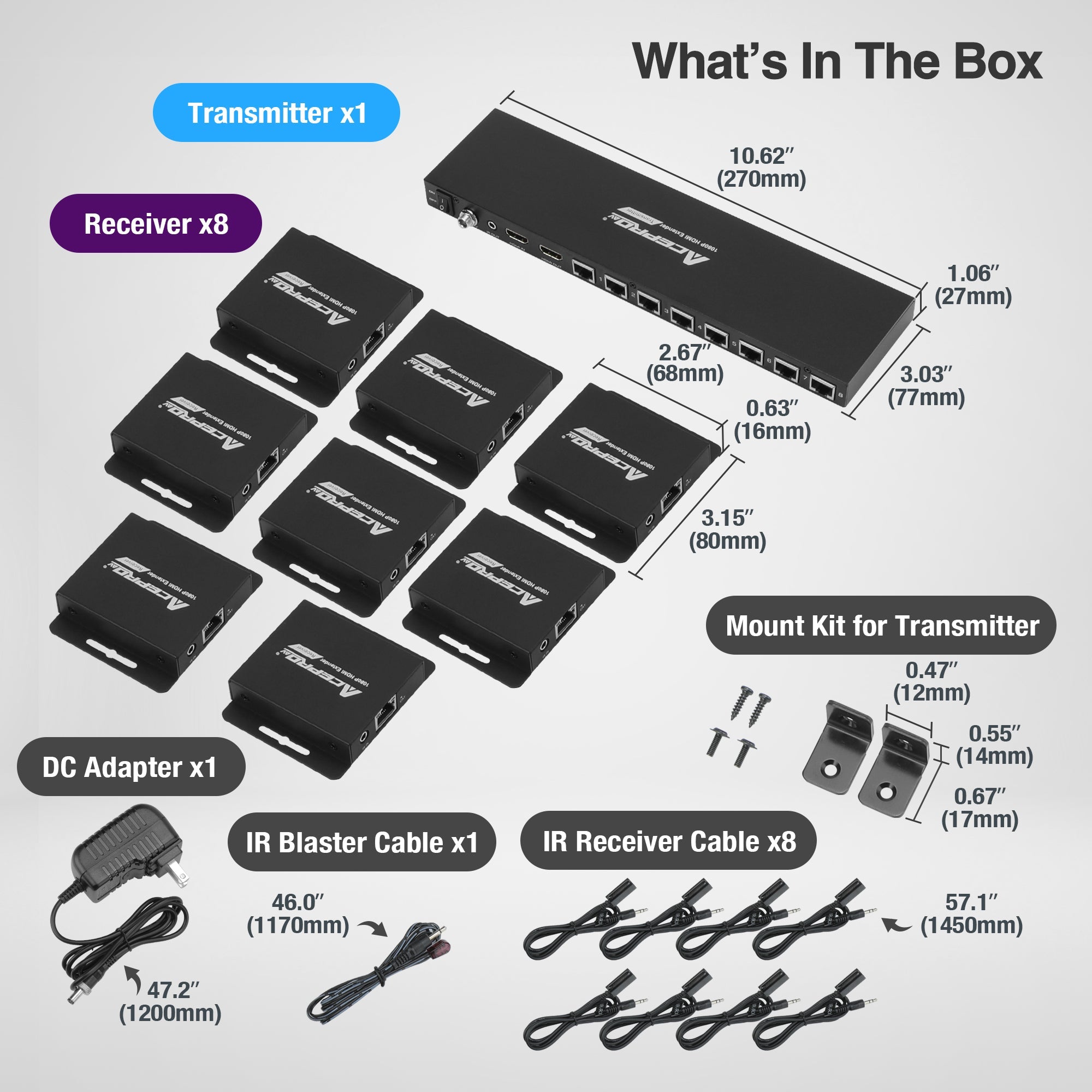

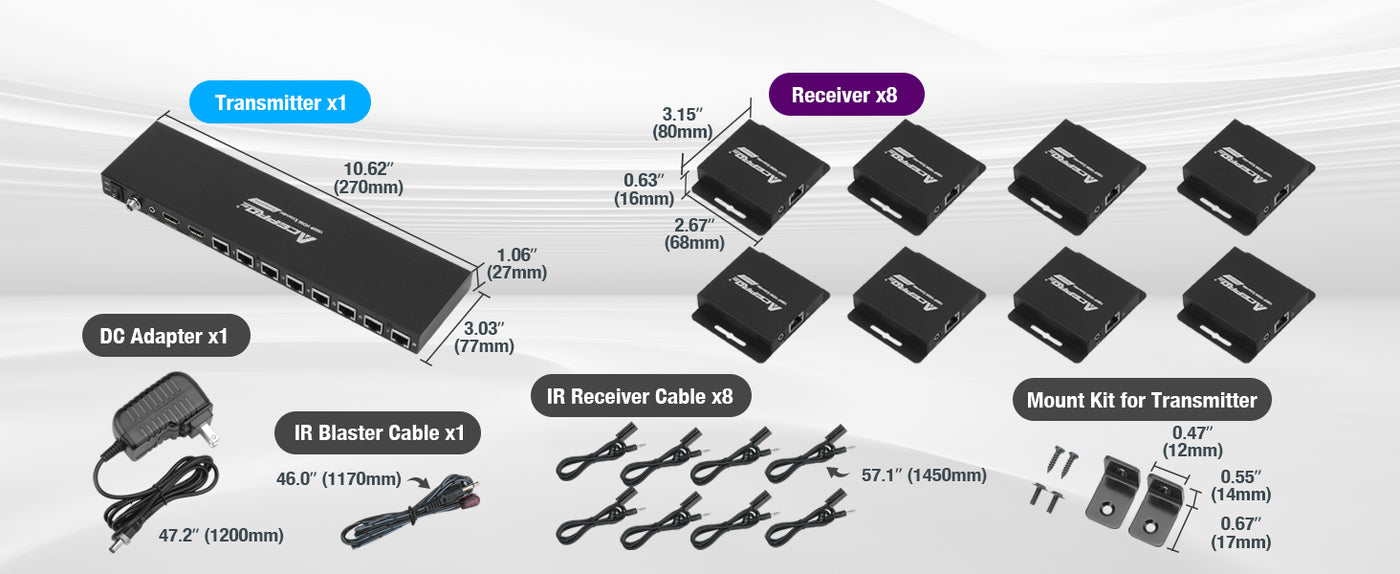

| [[Transmitter Size | Weight]] |
| [[Receiver Size | Weight]] |
| Enclosure Material | Transmitter: Aluminum |
| EDID Settings | Copy EDID from the Transmitter HDMI Loop Out Display / 1080p 5.1CH / 1080p 7.1CH / 1080i 2CH / 1080i 5.1CH / 1080i 7.1CH / 3D 1080p 2CH / 3D 1080p 5.1CH / 3D 1080p 7.1CH |
| NOTE | Product does not include HDMI cables or RJ45 CAT cables. Product does not include Mini-USB cable for firmware update. Product is not a HDMI Switch. Product does not support HDMI ARC or HDMI CEC Feature. |
Why is the power LED not turning on?
Why is the power LED not turning on?
Please verify that the power supply is firmly connected and the output voltage is the recommended 12V/2A.
Why is there no sound or why am I experiencing audio issues?
Why is there no sound or why am I experiencing audio issues?
Please check that the HDMI cables are securely connected, confirm that the audio format being used is supported by the connected display, and verify that the audio output setting is configured for HDMI audio.
Why is the display output unstable?
Why is the display output unstable?
Display instability may occur if the cable length exceeds specifications, so please ensure that the UTP cable length between the transmitter (TX) and receiver (RX) does not exceed 164 ft (50 m) and that the HDMI cable length does not exceed the recommended maximum of 33 ft (10 m).
Why is digital audio not working?
Why is digital audio not working?
Please confirm that the connected display supports digital audio, ensure that the digital audio option is enabled, verify that the EDID switch is set 5.1CH or 7.1CH audio if applicable, and check that the video source output is configured for digital audio.
